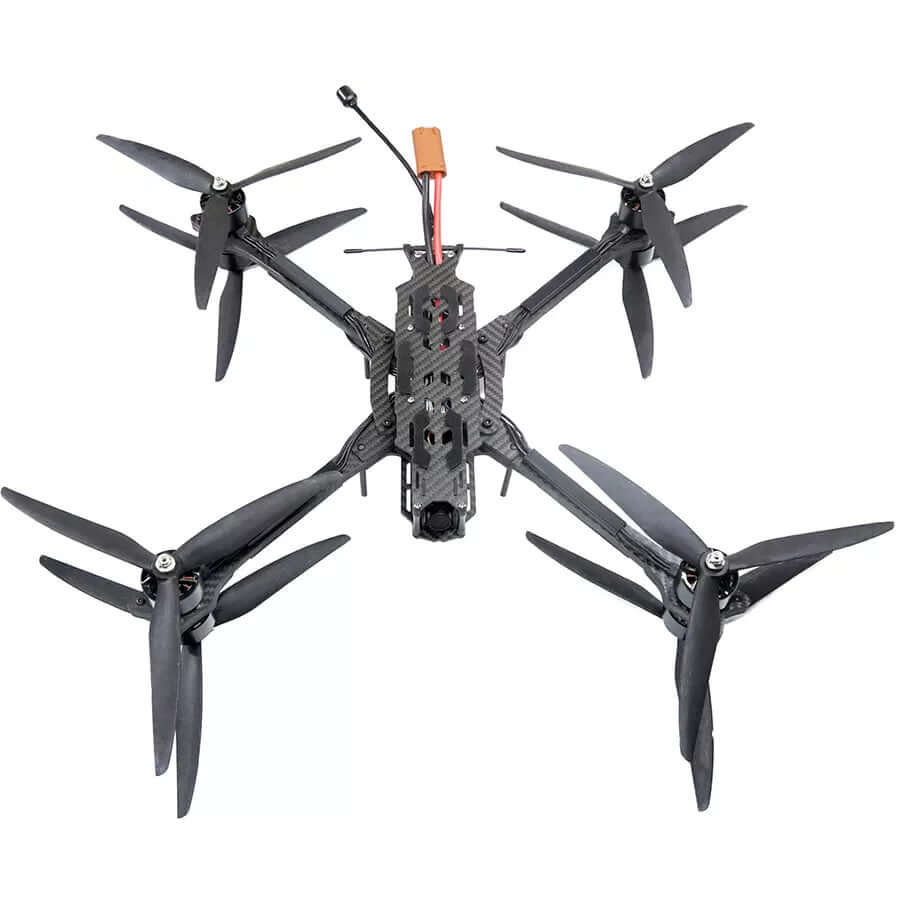

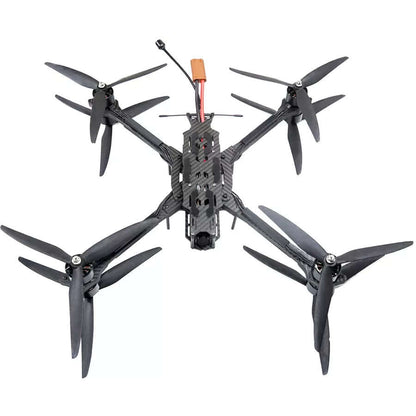

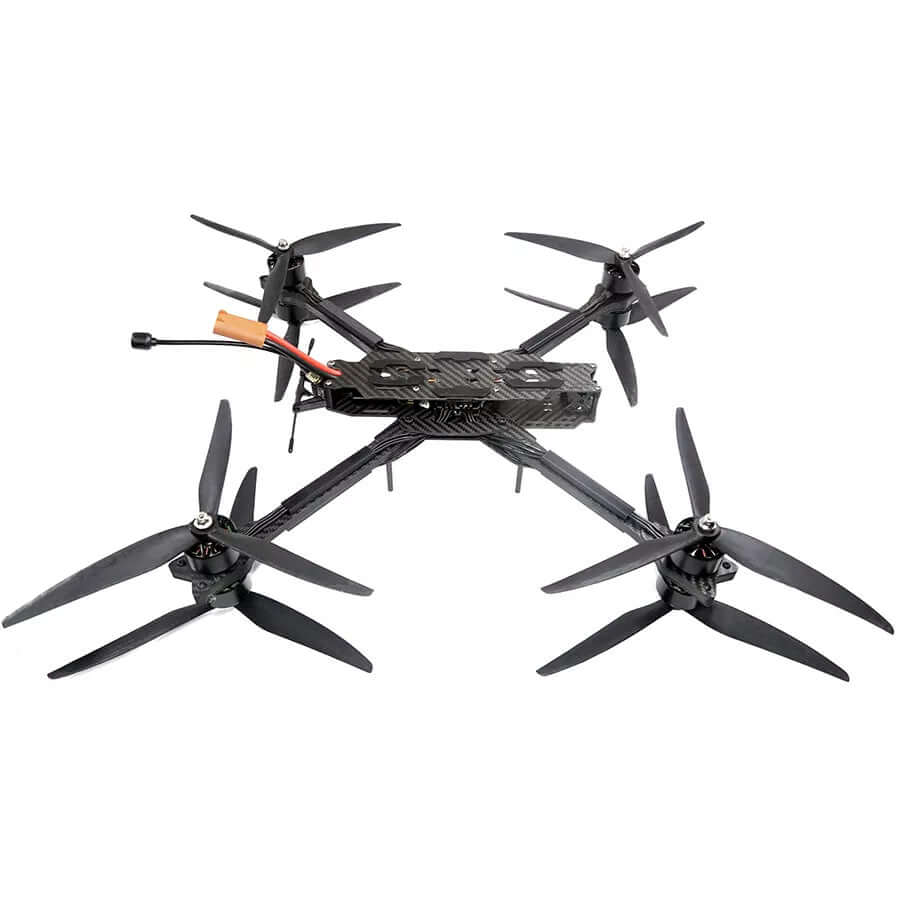

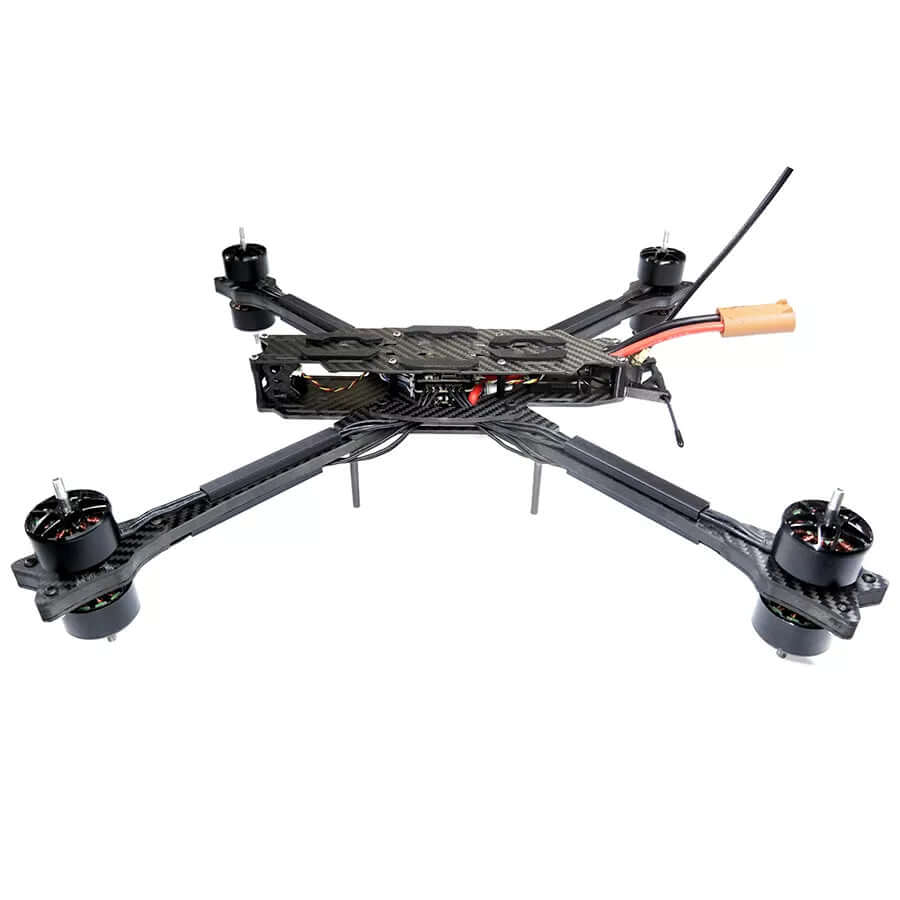

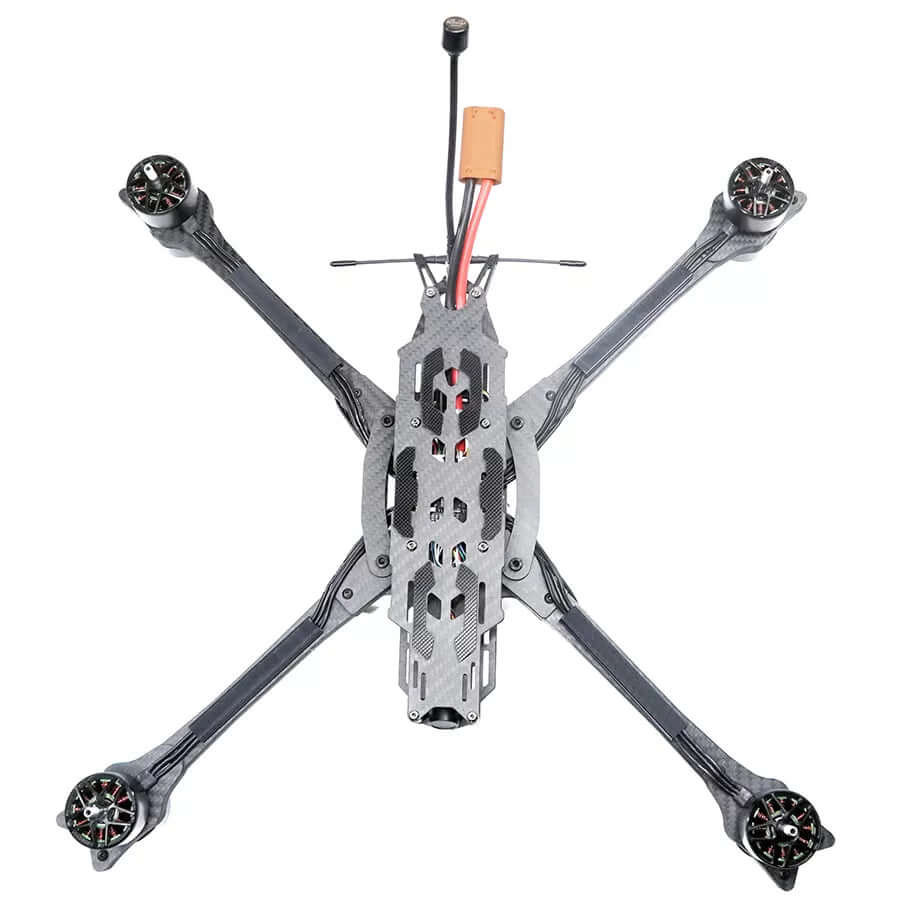

X8 10" FPV Drone Kit with HD Transmission & 7KG Payload

The X8 10" FPV Drone Kit delivers HD video transmission and supports up to 7KG payload, making it ideal for industrial tasks, aerial transport, and professional long-range flights.

Product name: X8 10-inch load-bearing FPV Drone
Color: Black
Material: 3K T300 carbon fiber
Frame wheelbase: 479mm
Arm thickness: 7mm

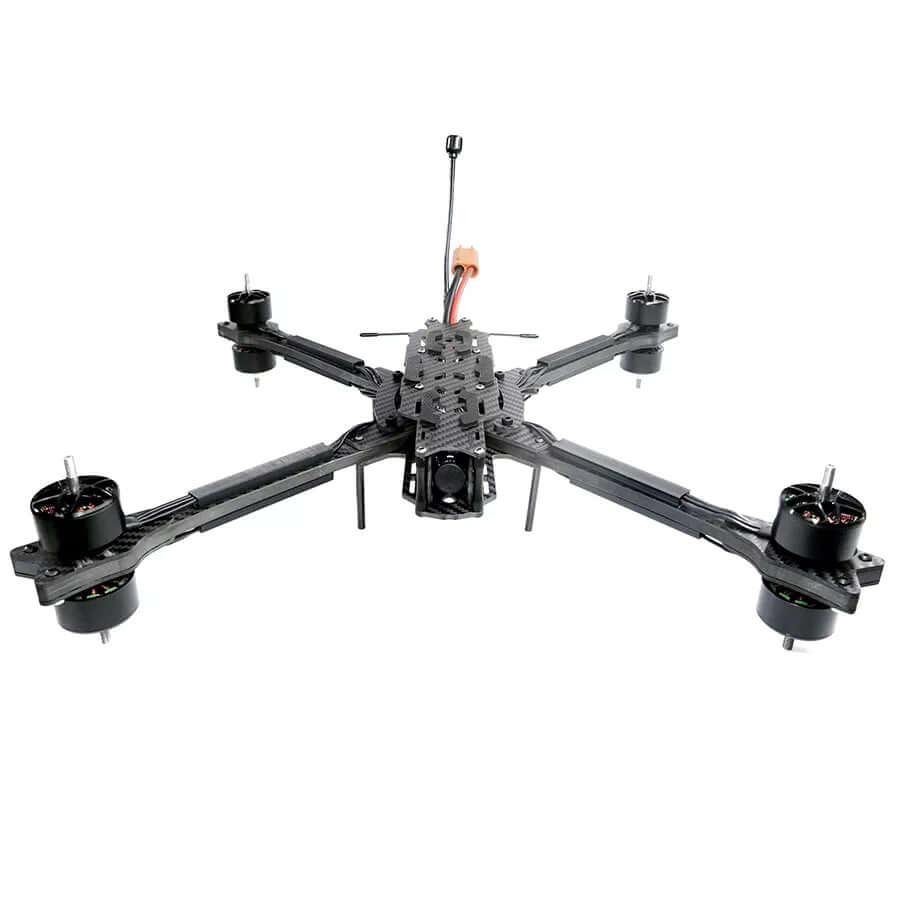

Frame: 479mm wheelbase X8 10-inch frame
Flight control: TCMM BL F405
ESC: TCMM 60A 4-in-1
Image transmission: TCMM 2.5W image transmission
Camera: TCMM1800TVL low-latency FPV camera lens focal length 2.1m 19*19
Motor: TCM 3115 900KV
Propeller: 1050 gray propeller
Recommended battery: 6S 10000 50C XT60 plug / 6S 1P 10000 INR21700-40T XT60 plug battery
Payload: 5 kg ~ 6kg
Flying Time: With Load Flying Time: 8-15min; No Load: 25min
Flying Distance: 5-10km
Max Speed: 160km/h
Max Altitude: 5000m
Product size (cm): 41*41*10
Color box size (cm): 480*480*120mm
Product net weight (bare machine/g): 1580g
Product weight (single box/g): 2050g
Packing: box
Gross weight/net weight (kg): 1.58/2.05

Product functions and features:
1. FPV first-person perspective operation, the machine has flexible and stable flight performance
2. Take-off load weight 5Kg
3. Maximum take-off altitude: about 5000 meters
4. Adopt high-efficiency 3115 motor
5. Maximum speed 160km/h

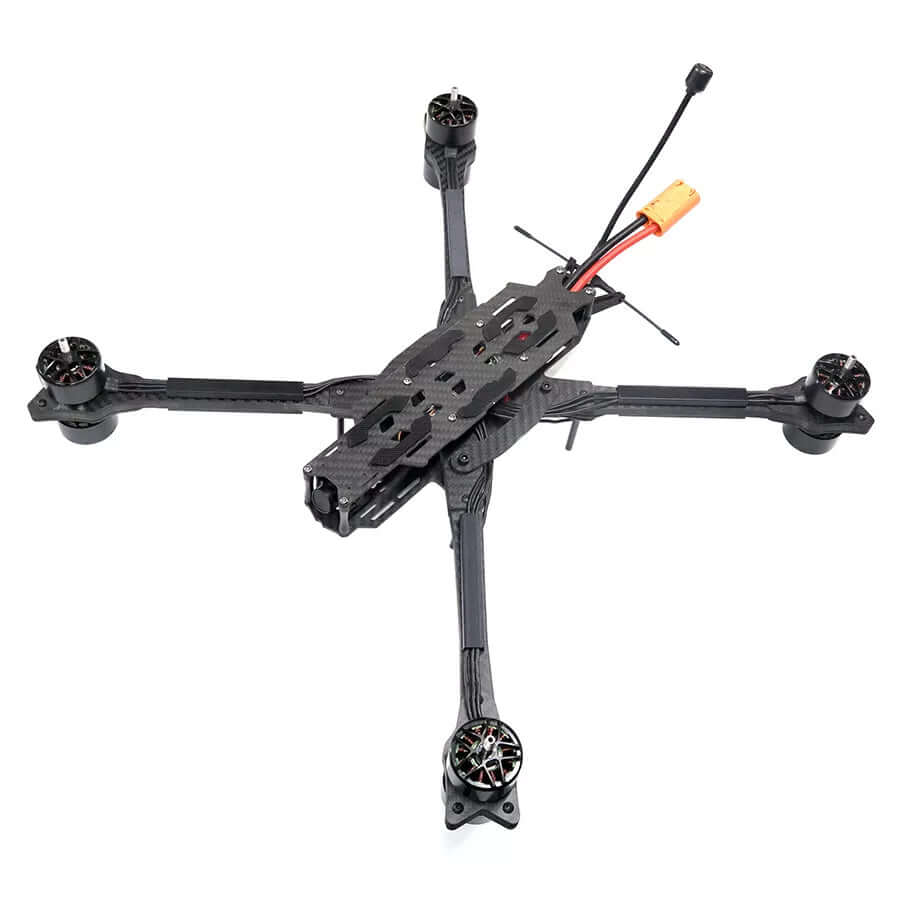

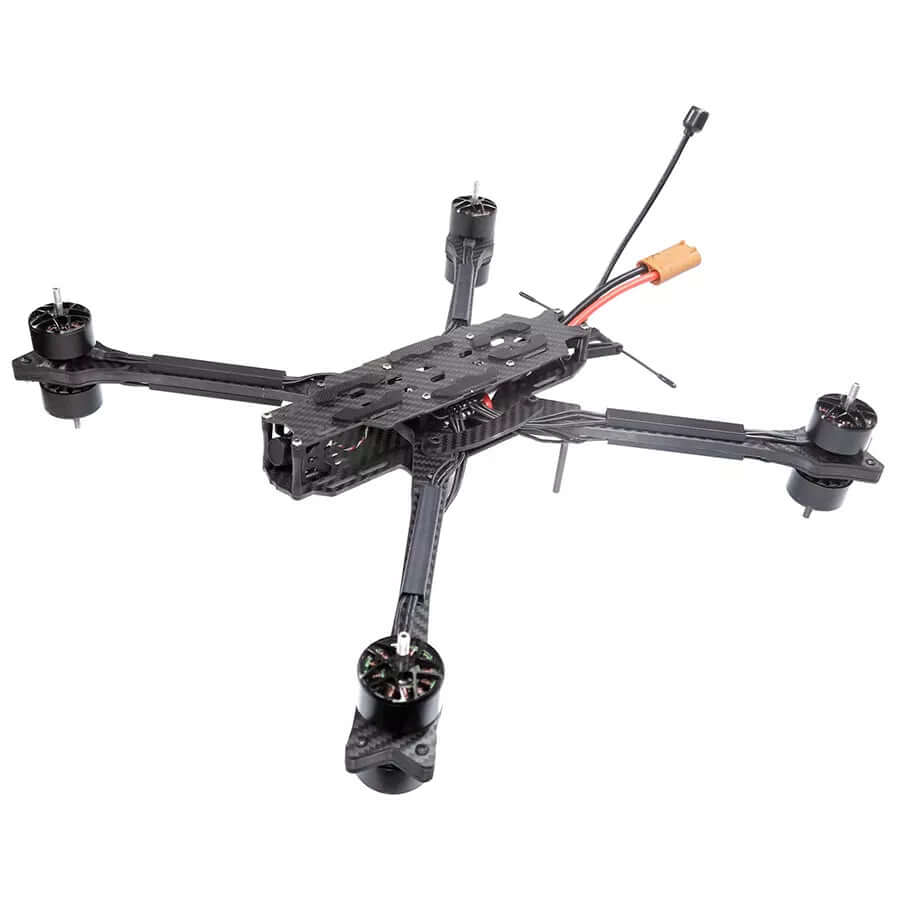

Frame: 479mm; Wheelbase X810 8-inch Frame
Structure: True X
Wheelbase: 479mm
Material: 3K T300 carbon fiber
Arm Thickness: 7mm

Motor: 3115  900KV
KV Value: 900KV
Operating Rated Voltage: 3-6S
No-load Current: 1.28A/ 12V
Phase Resistance: 38mΩ
Motor Weight: 112.3g
Maximum Current: 64.7A
Maximum Power: 1617 W
Maximum Thrust: 4185g
Motor Size: Ф37.1*32.1mm

Flight Control: TCMM BL F405
MCU: STM32F405
Gyroscope: MPU6000
On-Screen Display: AT7456E
BEC: 9V/2A, 5V/3A, 3.3V
Firmware: TCMM405
Weight: 8g
Mounting Hole Spacing: M3*30.5*30.5

ESC: TCMM-60A
Model: TCMM-60A
Continuous Current: 60A
Peak Current: 65A (10S)
LiPo Cells: 3-6S
Weight: 12g
Firmware: BL-S
Max Throttle Signal: DSHOT600
Mounting Hole Spacing: M3*30.5*30.5MM

Image transmission VTX: 5.8G 40CH 3W
Frequency: 5.8G
Channels: 40CH
Input Voltage: 7-26V
Output Power: 600mW/1200mW/1600mW/2500mW
Protocol: Smart Audio
Size: M330.530.5
Weight: 19g

Camera: B19 Product Manual Cam 1500TVL
Model: HD 1500TVL (upgraded version, with OSD tuning board)
Image Sensor: 1 / 3′CMOS
Pixels: 1500TVL
Lens: 2.1mm
Signal System: PAL / NTSC (adjustable via OSD)
Signal-to-Noise Ratio: ＞ 60Db（AGC OFF）
Electronic Shutter Speed: PAL：1 / 50-100.000; NTSC: 1 / 60-100,000
Electronic Shutter: PAL: 1/50 - 100,000; NTSC: 1/60 - 100,000"
Automatic Gain Control (AGC): Low/Medium/High
Backlight Compensation(BLC): Yes
Minimum Illumination: 0.001Lux / 1.2F
WDR: D-WDR
DNR: 3DNR
Day/Night: Auto/Color/B&W
Power Supply: DC 5V-30V

Antenna: 5.8G RHCP 150MM
*The whole is made of imported PC+ABS material which can withstand high strength impact.
*Impact resistant double-sheathed semi-rigid cable.
*Root reinforcement design, 360 ° protection.

RX: ELRS 915MHz
Processing Chip: ESP8285
RF Chip: SX1276IMLTRT
Power Input: 5V
Operating Current: 100mA
Operating Protocol: CSRF
Receiving Frequency Range: 915MHz or 868MHz
Size: 12mm12mm3mm
Weight: 0.6g (without antenna)
Antenna Connector: IPEX1
Telemetry Output Power: <17dBm
Firmware Update Method: WIFI

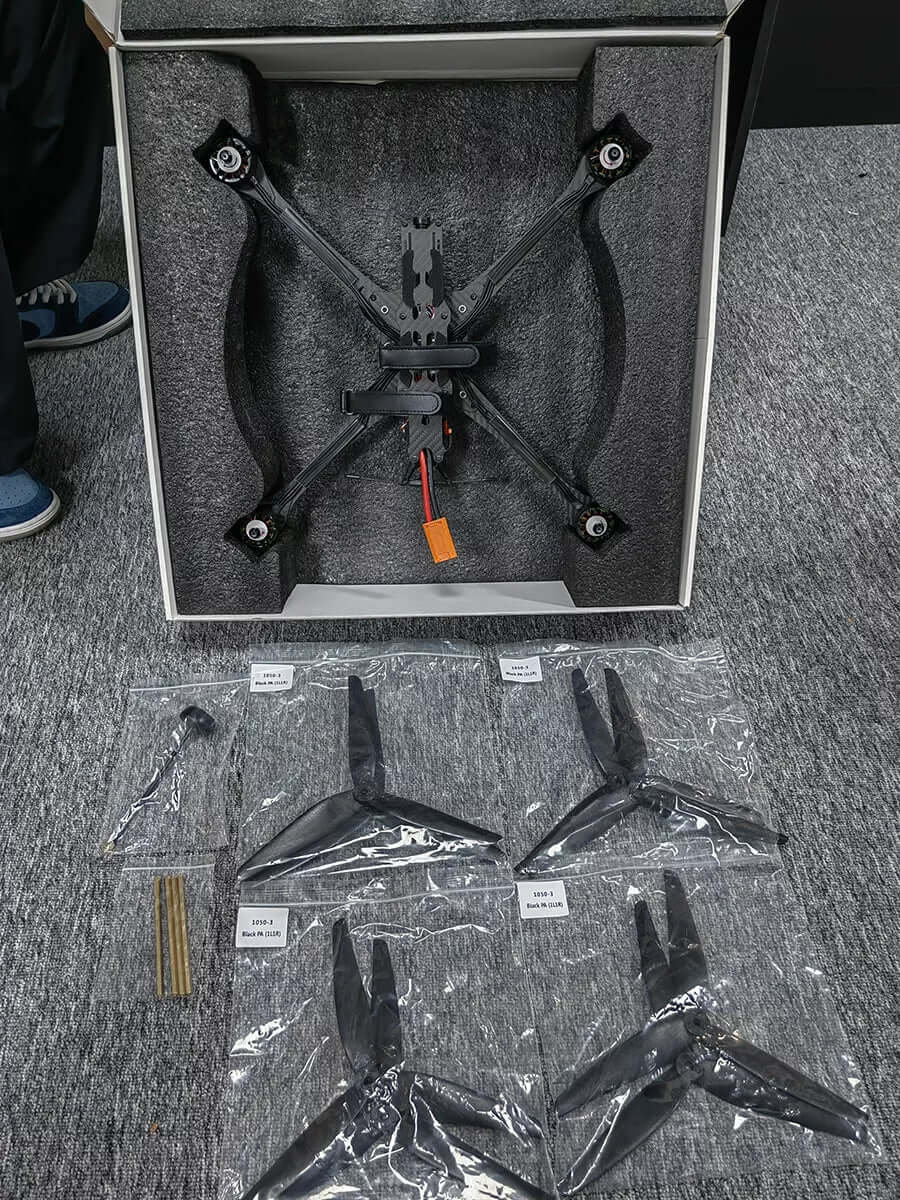

Propellers: Gemfan Prop 1050
Type: 1050
Blades: 3
Material: Fiberglass Nylon
Pitch: 5in
Center Hole lnner diameter: 5mm
Weight/g: 17g

Product net weight (bare/g): 1580g
Product weight (single box/g): 2050g
Box Size (cm): 480*480*120mm
Product Size (mm): 410*410*100mm

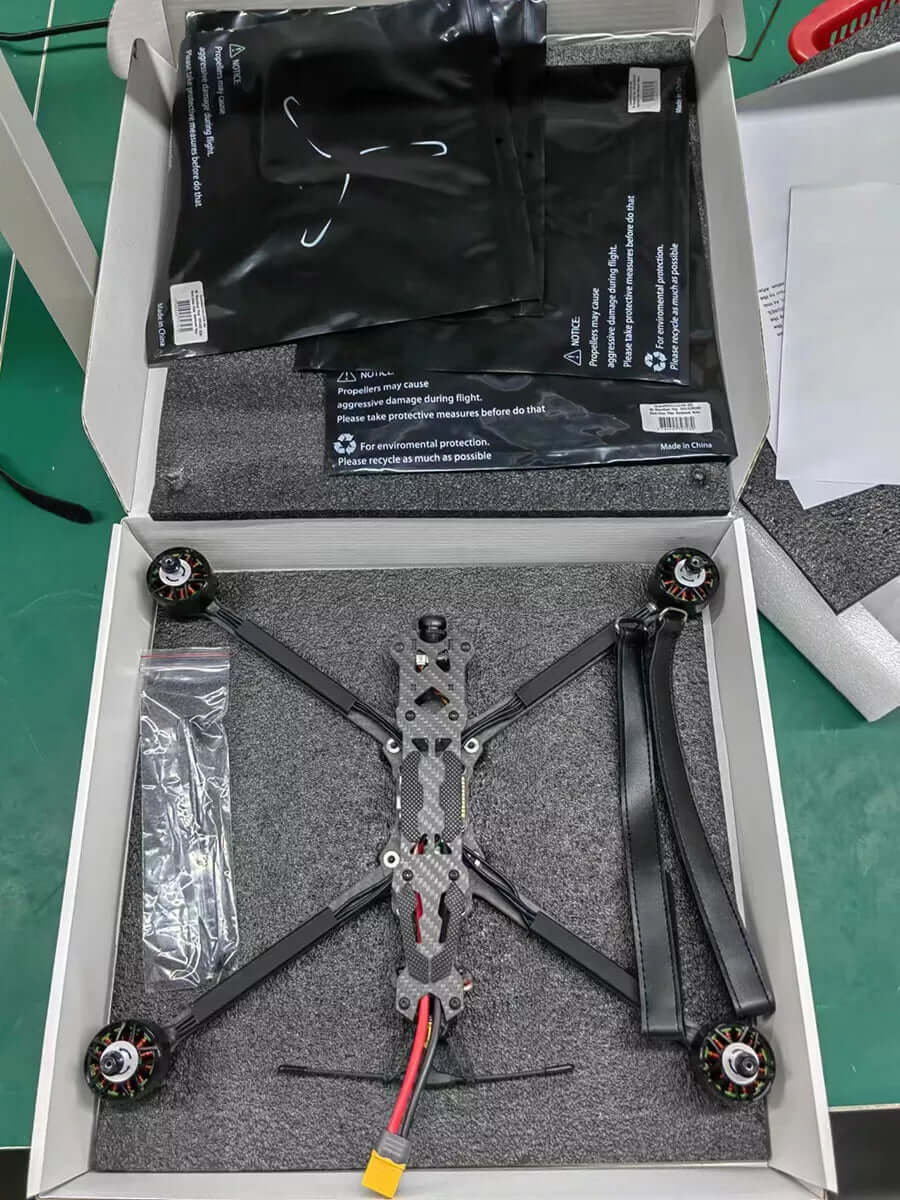

Note: Batteries and transmitters are not included in the package

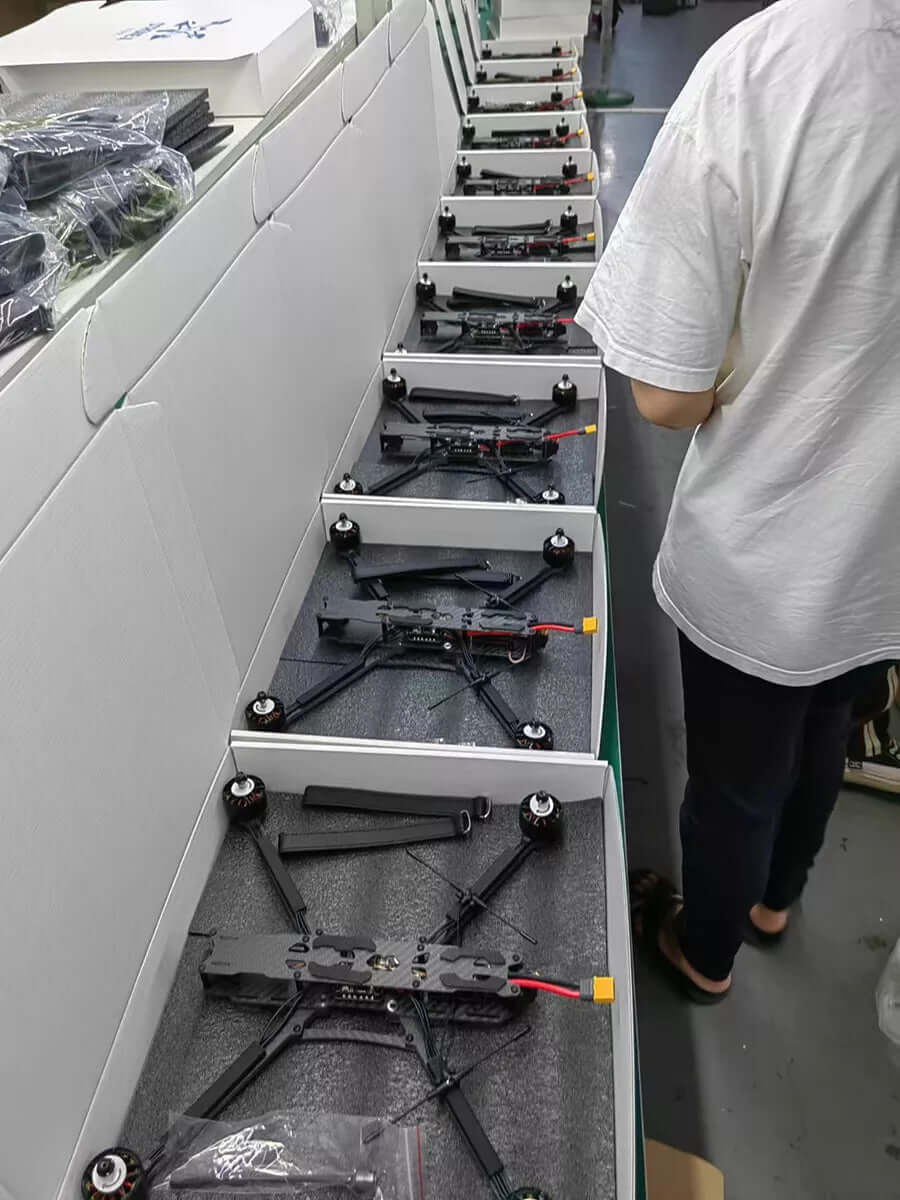

**We are the source manufacturer, welcome to purchase in bulk!
