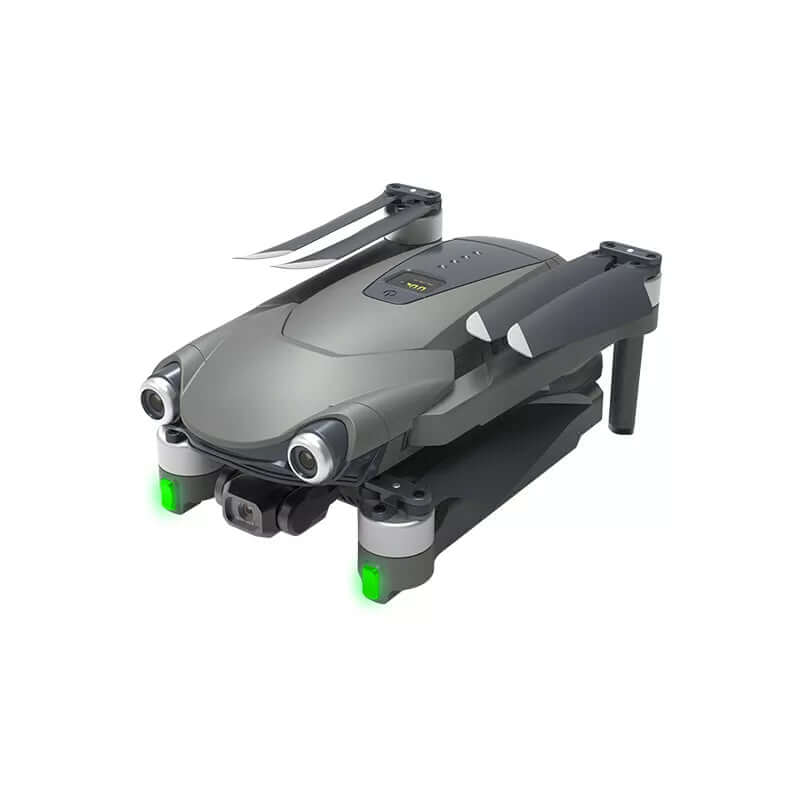

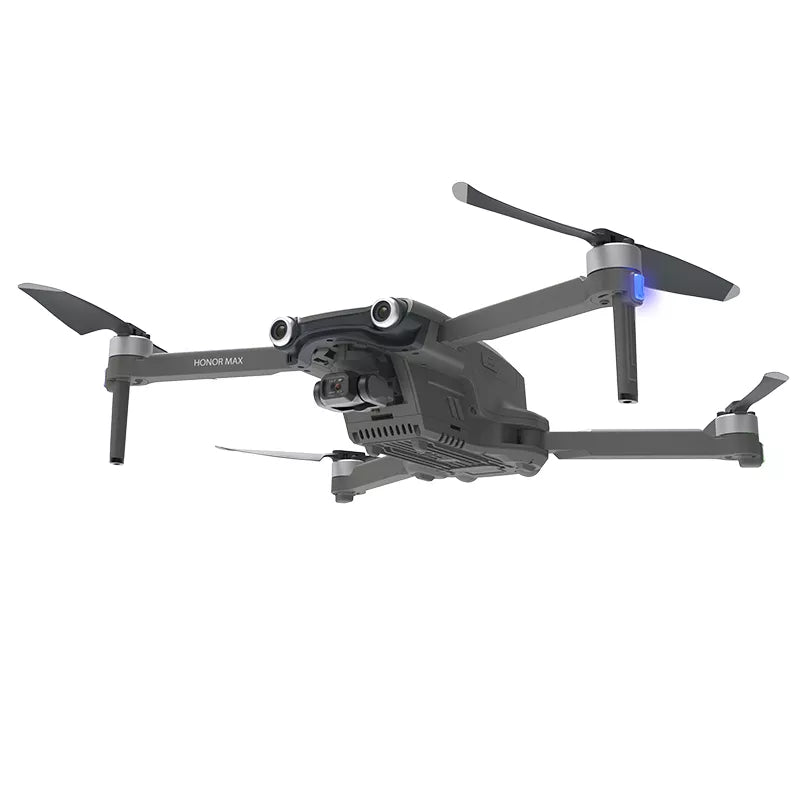

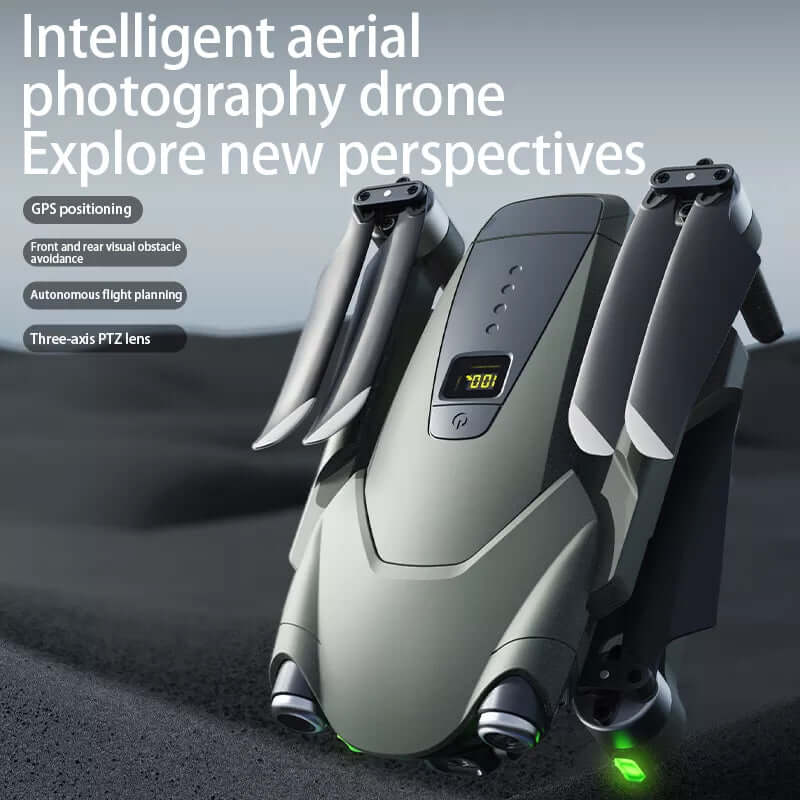

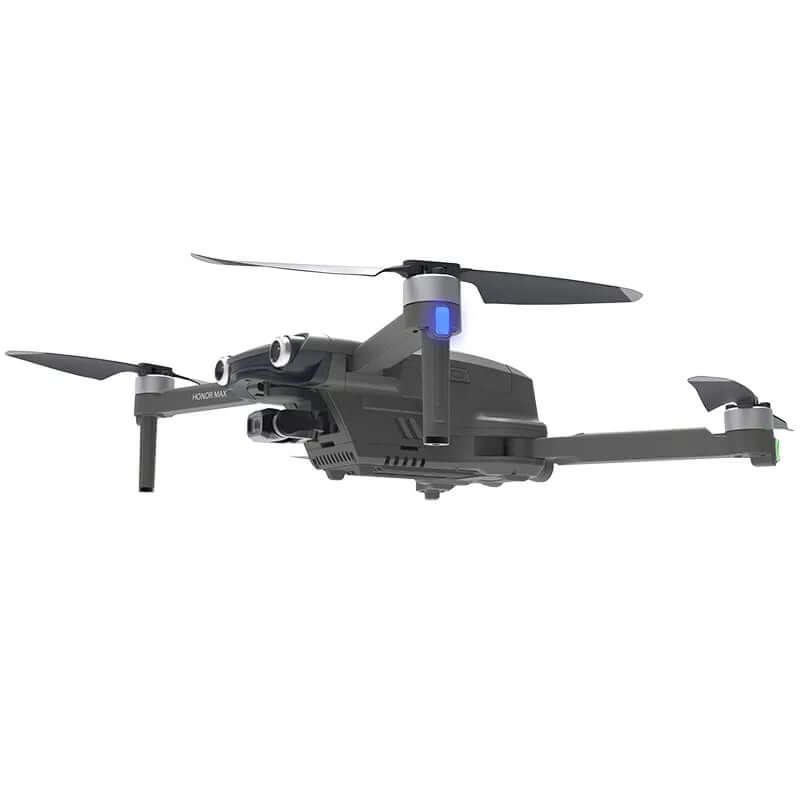

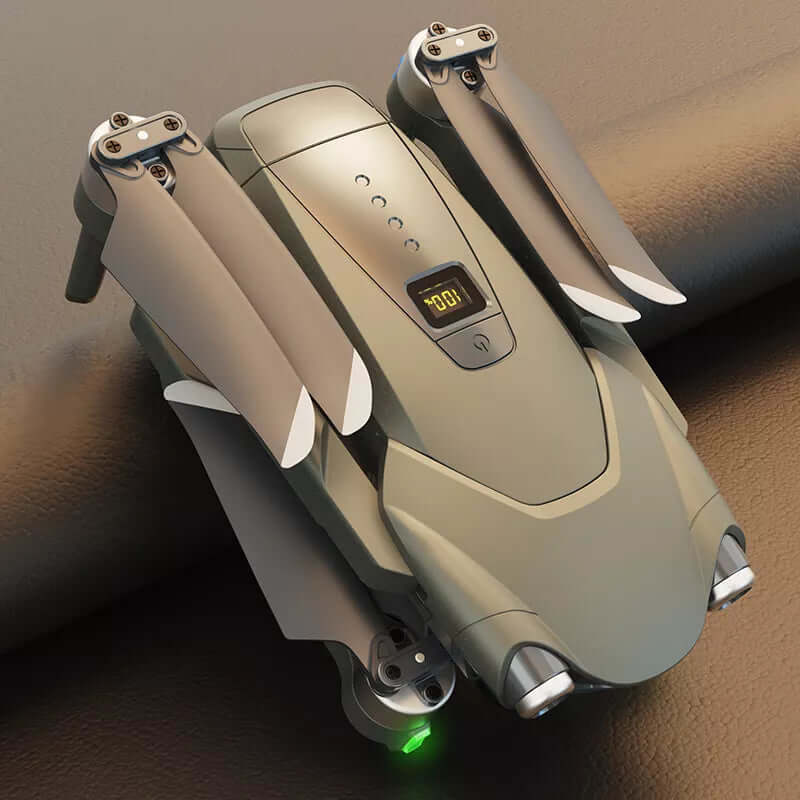

S188 4K GPS Drone with 3-Axis Gimbal Sony Camera & 6-Eye Obstacle Avoidance 5KM FPV Quadcopter

2024 NEW S188 4K GPS Drone with 3-Axis Gimbal Sony Camera & 6-Eye Obstacle Avoidance 5KM FPV Quadcopter

Basic parameters:
Product model: S188 Sony 4K three-axis gimbal visual obstacle avoidance drone (with FAA)
Wheelbase: 375mm (diagonal)
Length × width × height: unfolded: 520 × 440 × 85MM
Weight: about 750 g (including battery)
Maximum ascent speed: 2.5 meters/second
Maximum descent speed: 4 meters/second
Maximum horizontal flight speed: 9 meters/second (about 33 kilometers/hour); 20 kilometers/hour
Control distance (no interference, no obstruction): 5000 meters; height: 500 meters
Flight time: Indoor: >34 minutes (single battery hovering); Outdoor: >32 minutes (single battery hovering); ≥20 minutes
Maximum take-off altitude: 5000 meters
Maximum wind resistance level: Level 6
Hovering accuracy: vertical: ±0.2m (visual mode), ±0.8m (GPS mode); horizontal: ±0.3m (visual mode), ±1.5m (GPS mode)
Gimbal system: three-axis brushless gimbal, pitch angle: -10 to 90 degrees, roll angle: -32 to 32 degrees, translation angle: -25 to 25 degrees
Camera lens: Sony 4K
Servo: flat angle 80 degrees
Photo resolution: 5700×3200 (TF card/mobile phone)
Video resolution: 3840×2160 25 frames (TF card), 2048×1080 25 frames (mobile phone)
Image format: JPG
Video format: MP4
Image transmission: 5G Relay digital image transmission

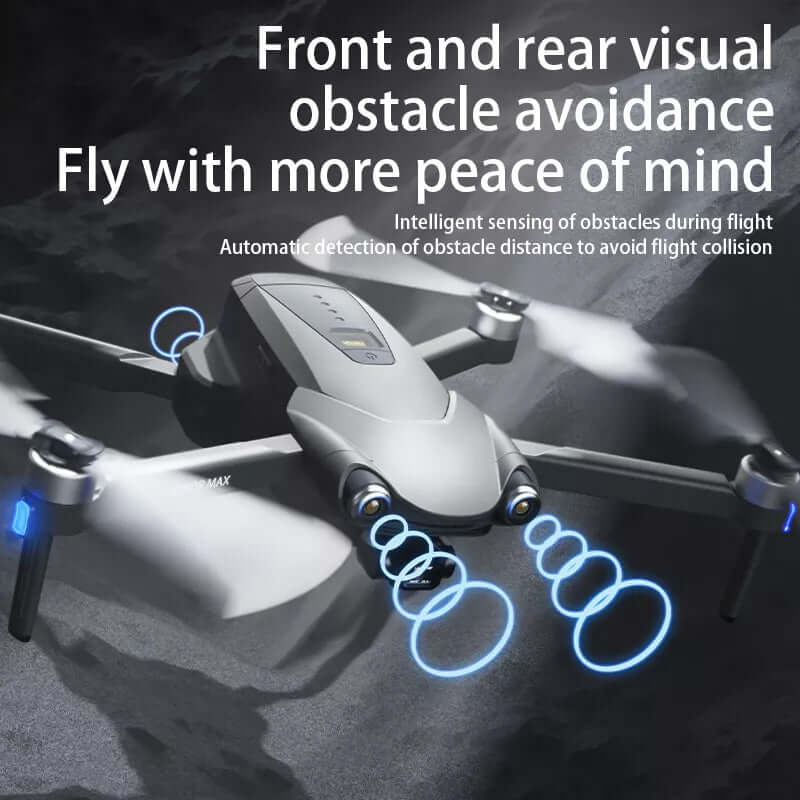

Perception system: Forward vision: Accurate perception range: 0.3 to 15 meters, effective obstacle avoidance speed: ≤4 meters/second, viewing angle: 60 degrees; Rear vision: Accurate perception range: 0.3 to 15 meters, effective obstacle avoidance speed: ≤4 meters/second, viewing angle: 60 degrees

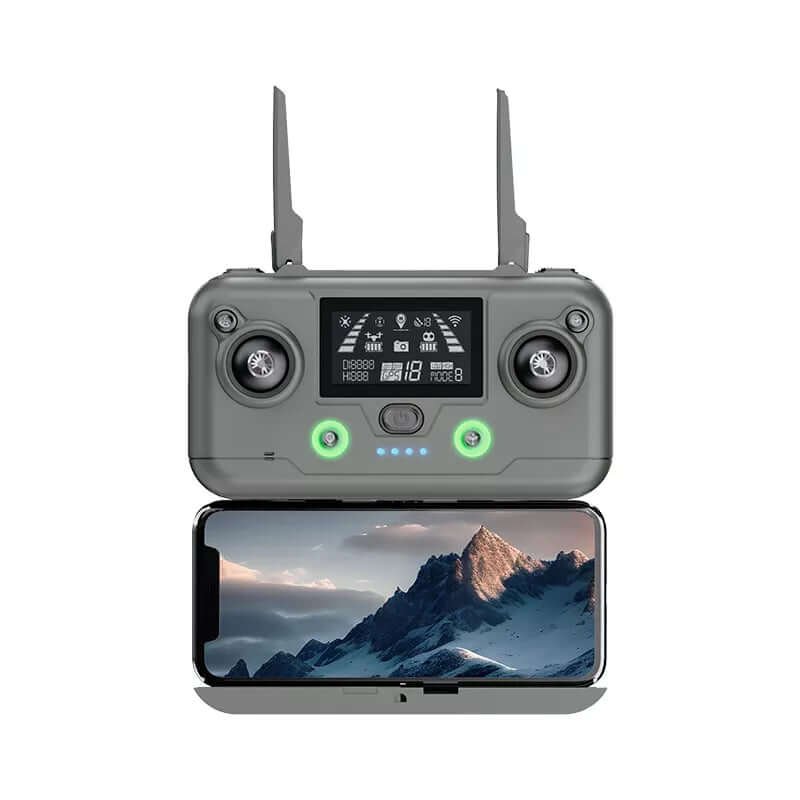

Remote control:
Length × width × height: 146 × 90 × 70mm
Weight: 253g
Supported mobile device size: length 180mm, width 86mm, thickness 10mm
Support interface type: Type-C
Working voltage: 7.4 V lithium battery
Nominal capacity: 800mAh
Maximum battery life: 100 minutes
Charging time: 140 minutes
Image transmission: Relay digital image transmission
Working frequency: 5G
Signal effective distance: 5000 M
Working environment temperature: 0℃ to 45℃
Protection: Low voltage protection: 6.5V

Smart battery:
Dimensions: 120×70×45
Weight: 247g
Nominal voltage: 11.4V
Nominal capacity: 4000mAh
Charging cut-off voltage: up to 13.2V
Discharging cut-off voltage: 9V
Standard charging current: maximum 3A
Maximum continuous discharge current: 40A
Charging time: 4.5 to 5 hours
Operating temperature range: Charging: 0 to 45℃, Discharging: 0 to 45℃

Motor:
Model: 2007 brushless motor
Rated voltage: 11.4 V
Rated load: ≥460 g
Rated current: ≤ 8 A
No-load current: ≤ 0.4 A
Operating temperature range: 0 to 45℃

ESC:
Maximum current: 4-in-1 ESC, single maximum current 10A (excluding BEC with stuck protection)

Charging stand:
Input voltage: standard voltage DC 5V 2A-3A Type-C interface
Output voltage: DC 13.2V 3A (Max)
Rated power: 15W (Max)
Charging temperature range: 0 to 45°C
Charging method: 3S balance charge
