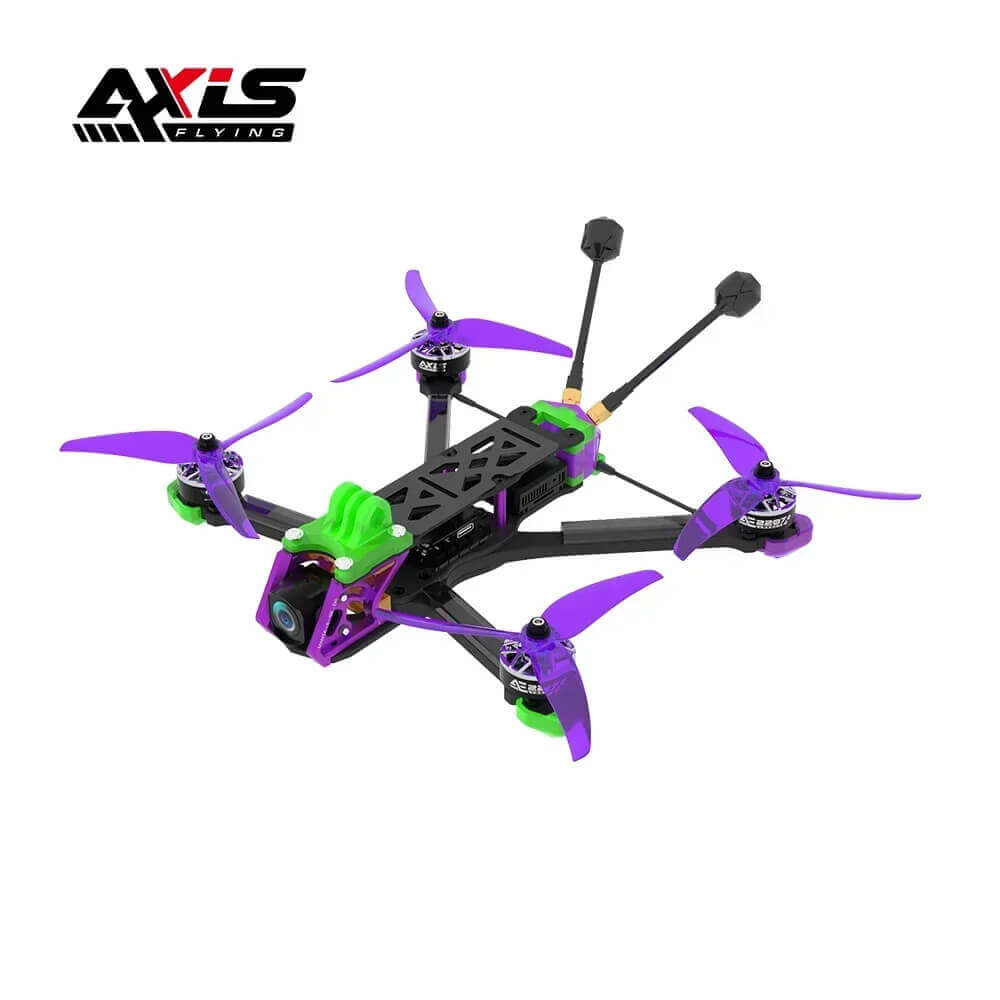

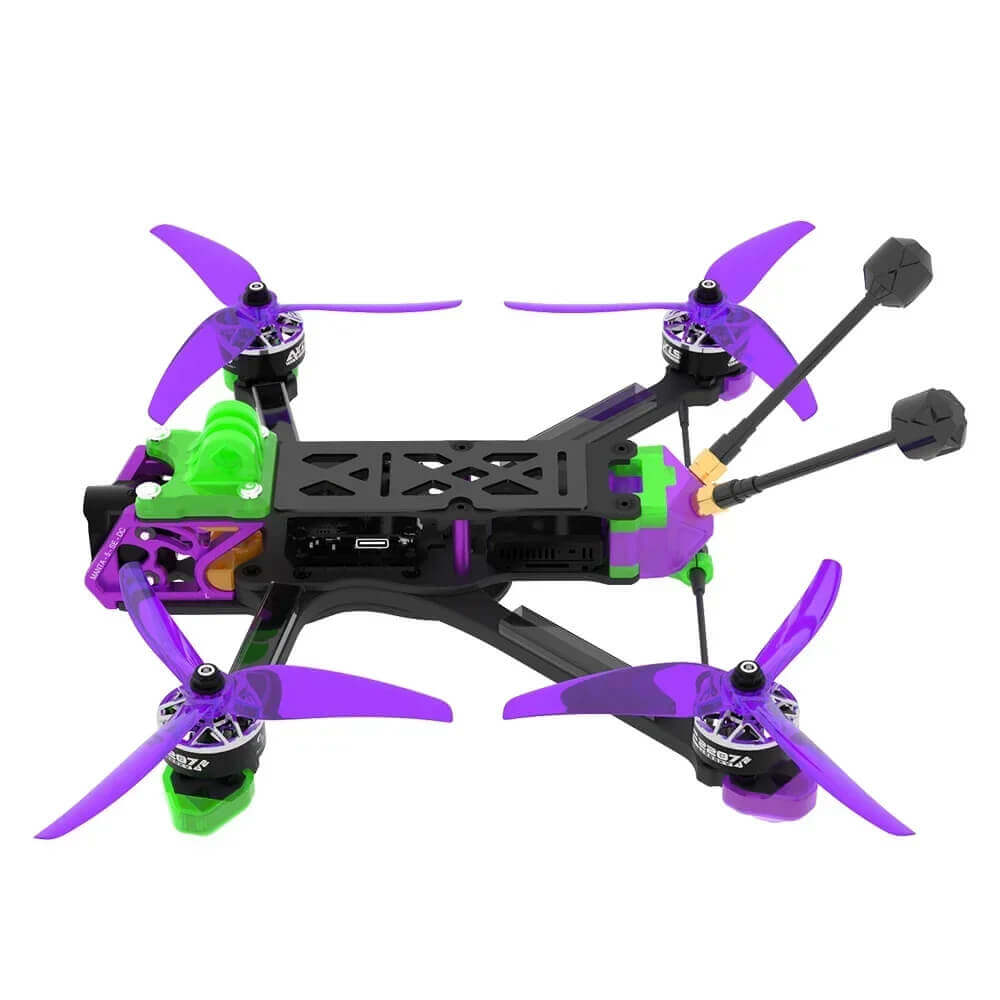

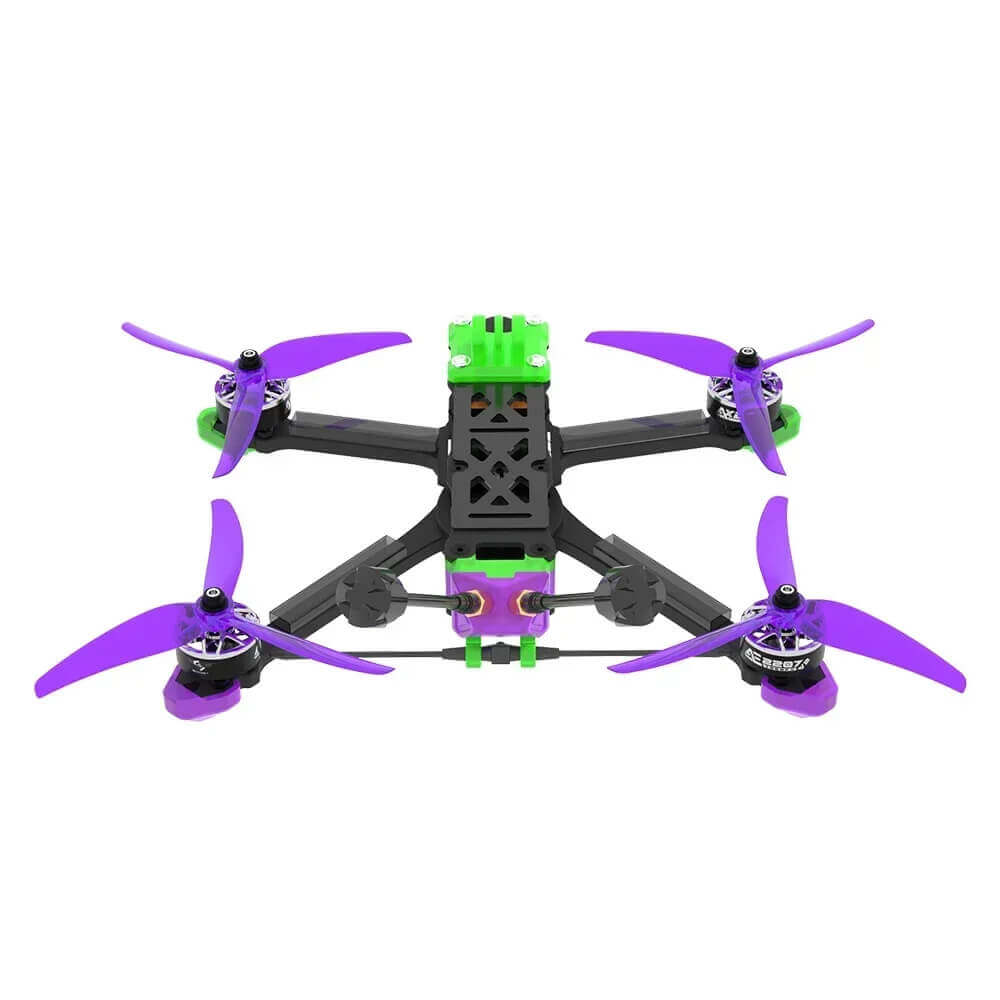

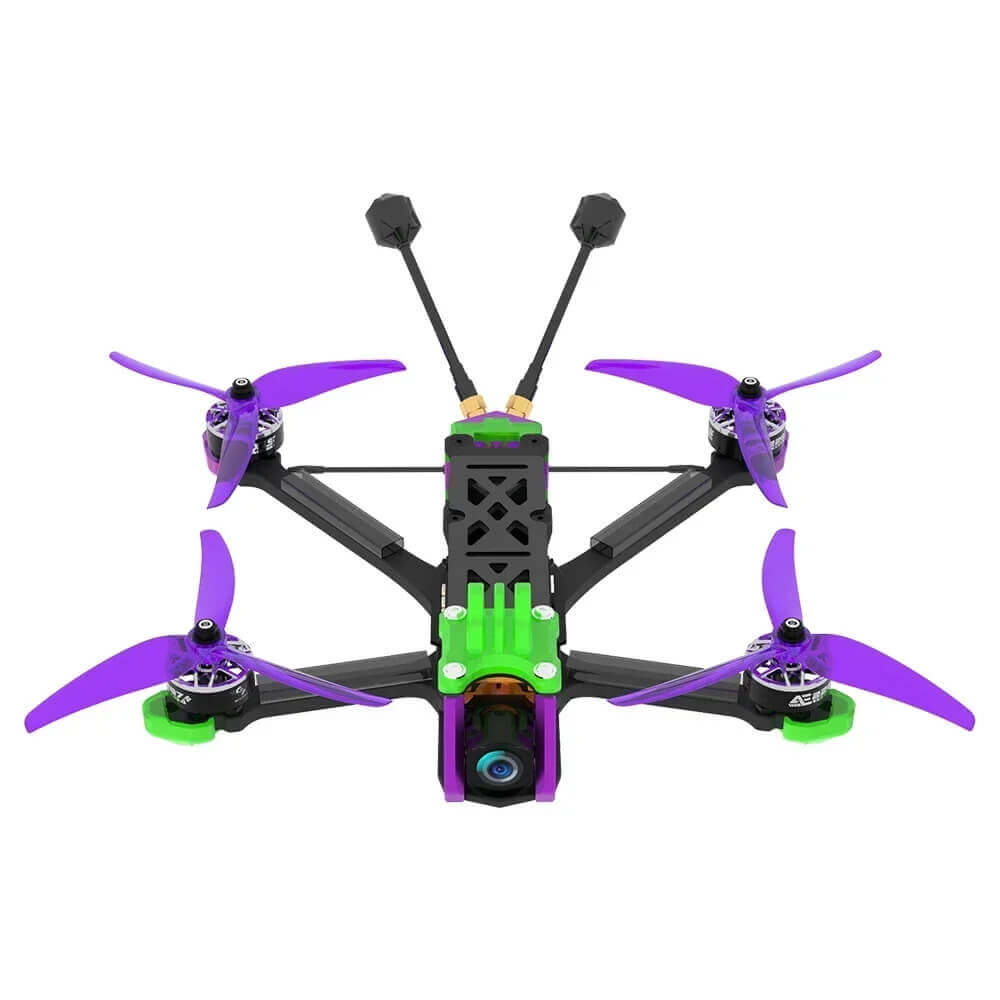

MANTA5 SE 5" FPV Drone Frame with DJI O4 & GPS – 6S Long Range Freestyle (PNP/ELRS/TBS)

MANTA5 SE 5" FPV drone frame with DJI O4 support, GPS module, and 6S battery compatibility—perfect for building your next long-range or freestyle drone.

Key Features

Innovative DeadCat Frame: CNC aluminum side plates and T700 carbon fiber structure provide high strength and camera protection, optimized for freestyle and cinematic flights.

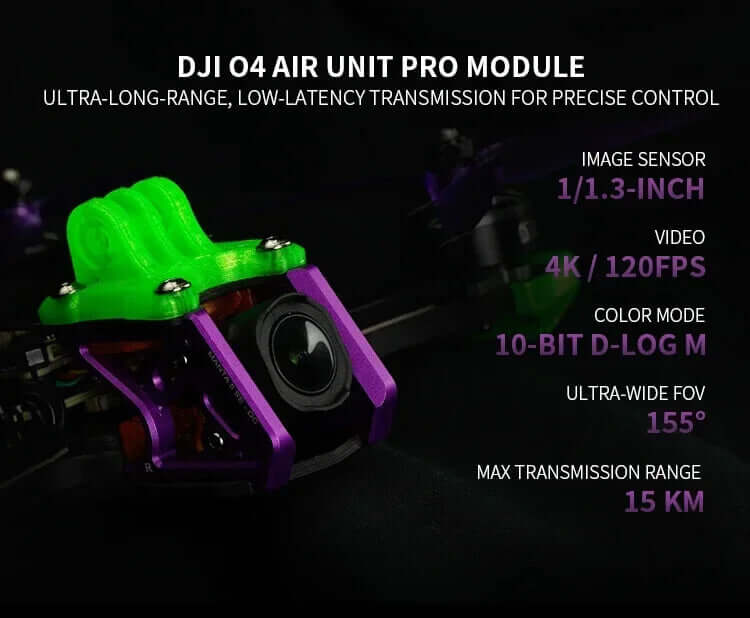

DJI O4 Pro Air Unit: Equipped with a 1/1.3” image sensor, 4K/120FPS video, 155° ultra-wide FOV, and up to 15km transmission range.
AE2207 V2-1960KV Motors: Powerful and responsive for advanced freestyle maneuvers like Sbang, Flow, and Bando.

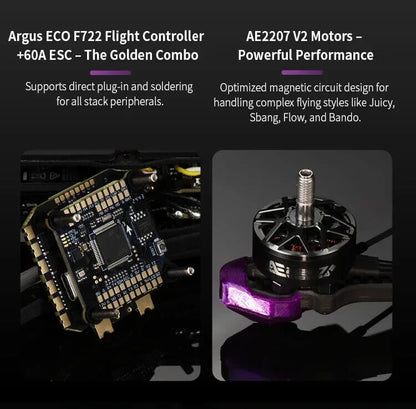

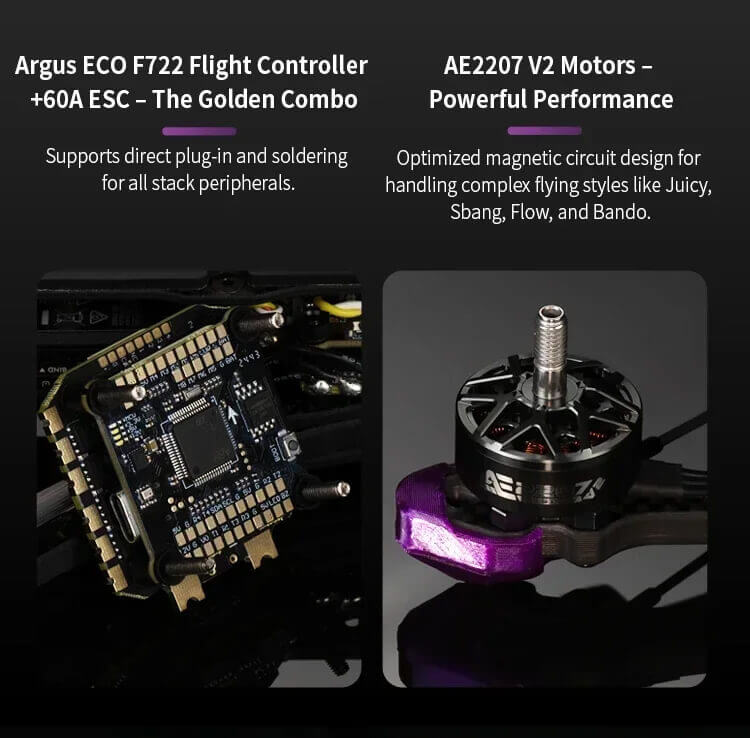

Argus ECO F722 + 60A ESC Stack: Plug-and-solder-friendly golden combo supports all stack peripherals with precision.

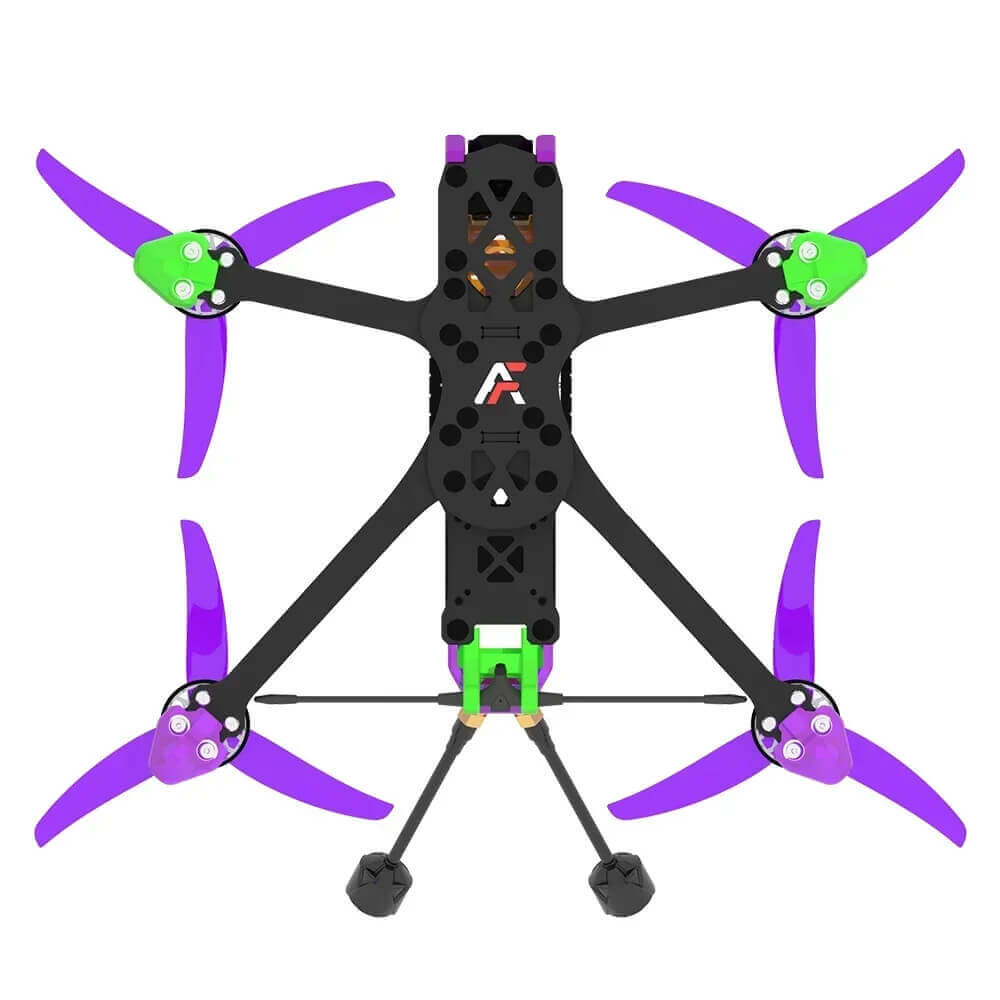

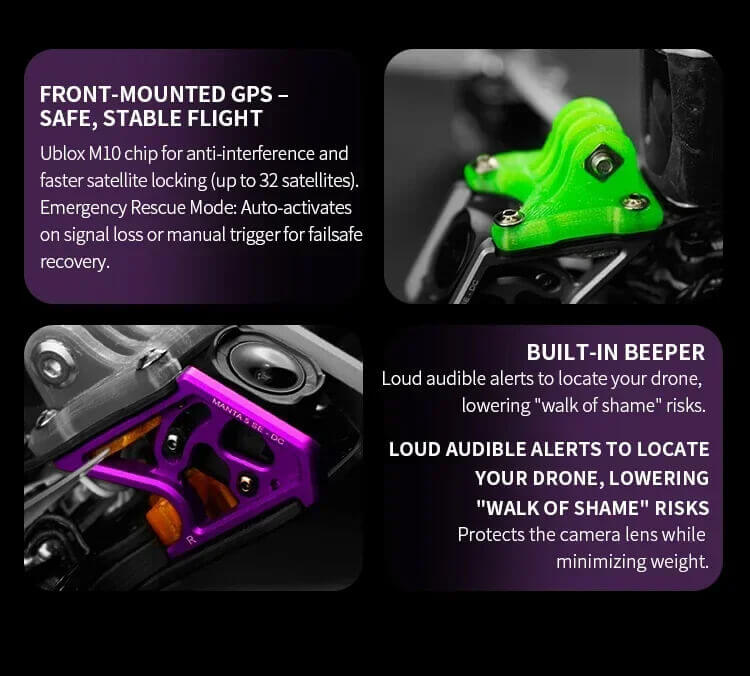

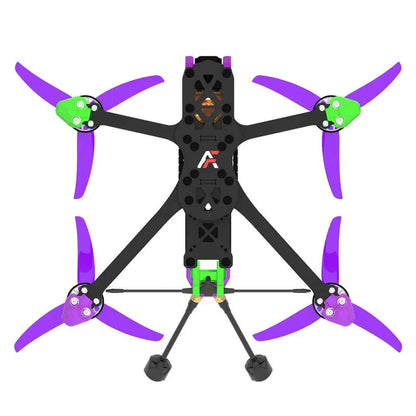

Front-Mounted Ublox M10 GPS: Ensures faster satellite locking (up to 32 satellites) and failsafe activation.
Built-In Beeper: Audible alerts for drone retrieval and crash location, reducing recovery time.

Product Specifications:

Product Name ：Axisflying Manta 5 SE DC
Frame ：Axisflying Manta 5 SE DC Frame
Wheelbase Size ：226mm
Weight ：454g ±10g
Top Plate Thickness ：2mm
Center Plate Thickness ：3mm
Bottom Plate Thickness ：3mm
Arm Thickness：6mm
Flight Controller ：Axisflying Argus ECO FC F722
ESC System ：Axisflying Argus ECO ESC 60A-6S (Bluejay 8 Bit)
Gyroscope ：ICM-42688-P
VTX ：DJI O4 UNIT PRO
Motors ：AE2207 V2 - 1960KV
Propellers :4.93.33
Battery Interface : XT60
Receiver Options : TBS Nano RX / ELRS 2.4G / ELRS 915
Recommended Battery : LIHV / LIPO 1050-1300 mAh 6S

Recommended Configuration:

Motors: Axisflying C246 or AE2207 V2
Propellers: Axisflying / Gemfan / HQ 4.9”–5.1” freestyle props
Lipos: 1050–1500mAh 6S
Stack: Axisflying ArgusPRO 55A/F7

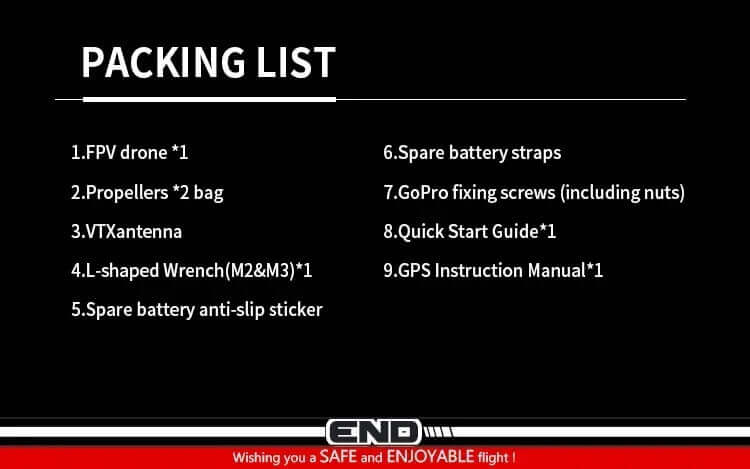

Packing List

• FPV Drone ×1
• Propellers ×2 bags
• VTX Antenna ×1
• L-shaped Wrench (M2 & M3) ×1
• Spare Battery Anti-slip Sticker ×1
• Spare Battery Straps
• GoPro Fixing Screws (with Nuts)
• Quick Start Guide ×1
• GPS Instruction Manual ×1
