MANTA 5 PRO FPV Drone Frame Kit with 34 LEDs DJI O3 & GPS

MANTA 5 PRO FPV Drone Frame Kit with 34 LEDs DJI O3 & GPS

Regular price $739.98
Regular price Sale price $739.98
Sale Sold out
Color
RX
DJI O3 Camera Drone

The MANTA 5 PRO 5" FPV Frame Kit combines 34 LEDs, DJI O3 compatibility, GPS mount, and a Square X design—perfect for freestyle or cinematic builds.

Product Specifications:
Product Name: AXISFLYING MANTA 5 PRO
Frame: AXISFLYING MANTA 5 PRO
Wheelbase Dimensions: DC wheelbase 228.8mm, Wide X wheelbase 226.5mm
weight: 485+10g
Top plate thickness: 2MM Forged grain carbon plateBottom plate
thickness: 3MM Forged grain carbon plate
Arm Thickness: 6MM Forged Carbon Plate
FC: AXISFLYING-F722-Mini
ESC: AXISFLYING-55A 32Bit -Mini
Gyro:MPU6000 orlCM-42688-P
VTX: DJI O3 AIR UNIT or Analog 5.8G
Motor: C227-1960KV
Blade: 5.1*3.8*3(Maximum support 5.1 inch blade)
Antenna: AXISFLYING 5.8G-L Or R
Power connectore:XT60
Receiver Version: TBS NanoRX, ELRS 2.4G
Recommended Battery: LIHV/LIPO 1300-1800 mAH 6S

Feature:
1. Aerodynamically sound design to maintainconsistent performance evenat speeds up to 180 km/h
2. Perfect for not only freestyleenjoyers but for cinematic pilotsas well
3. A whole lot of 34 LED's that are both stylish yet practicalindicating battery levels or GPS 3D lock

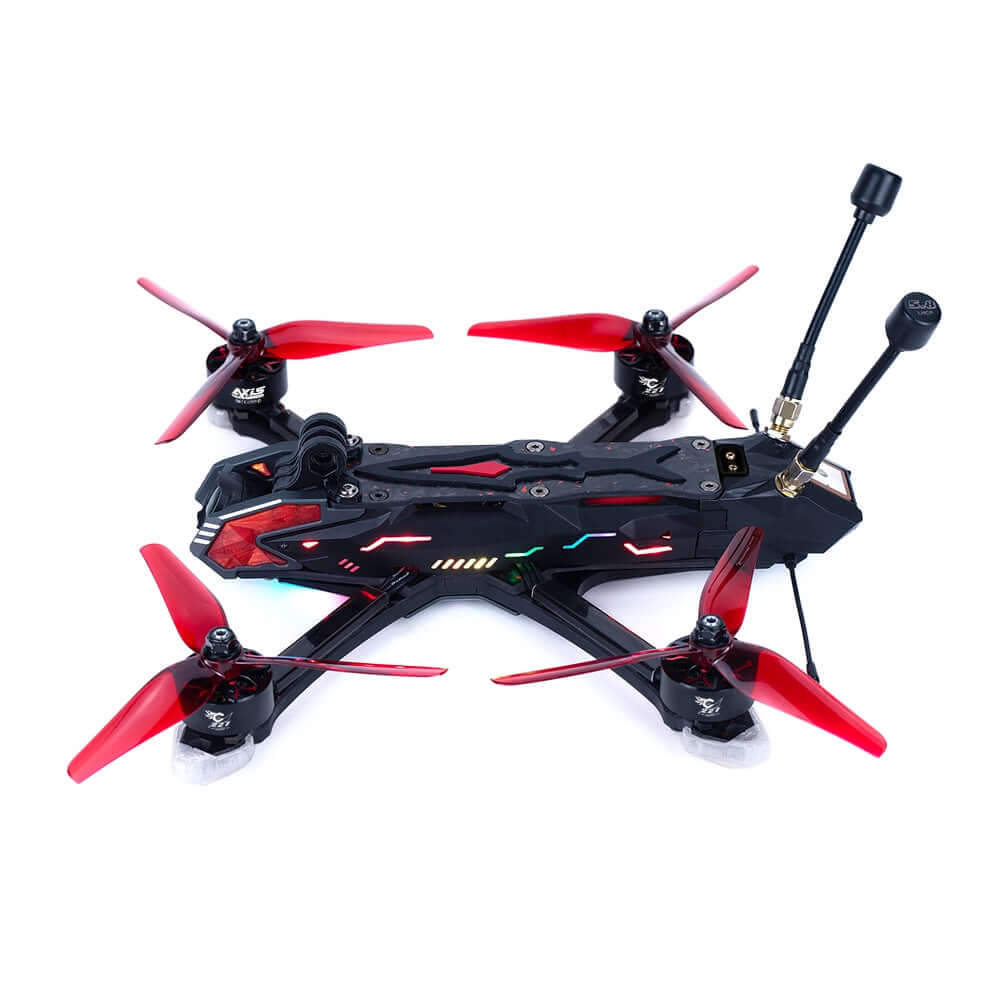

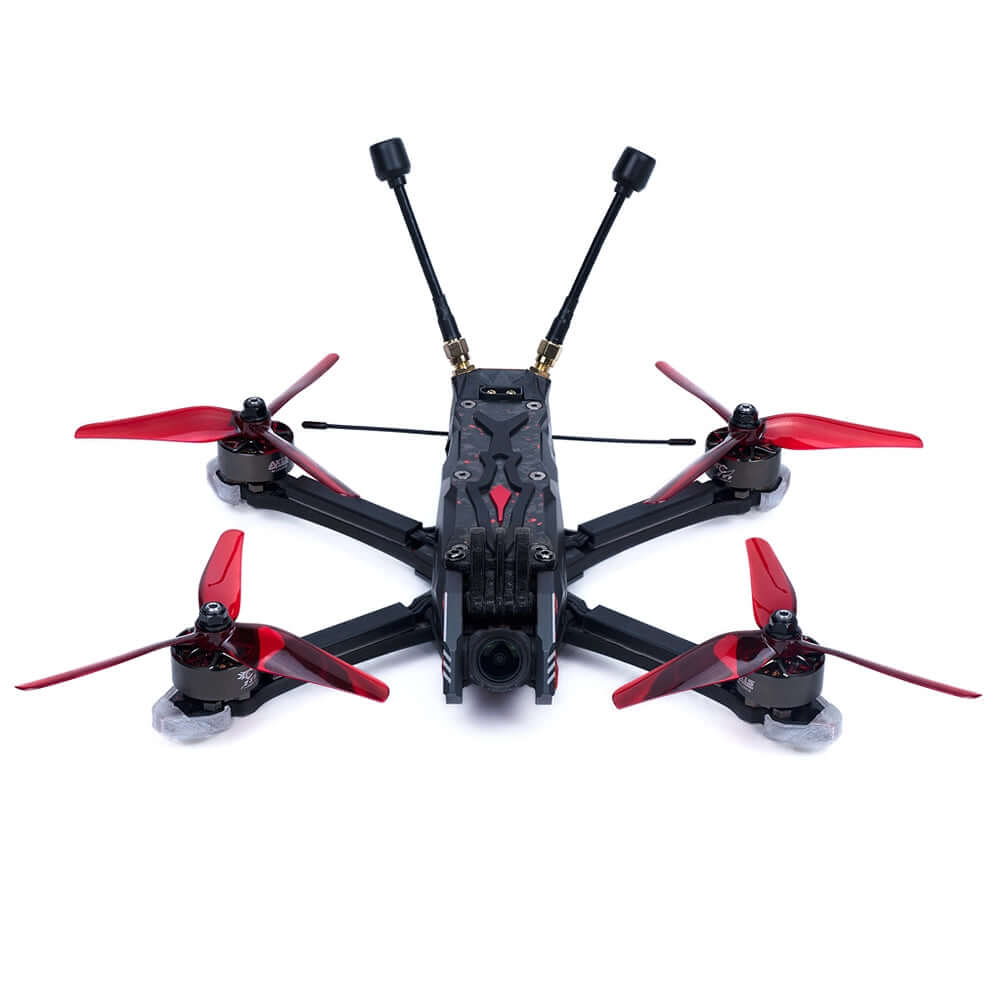

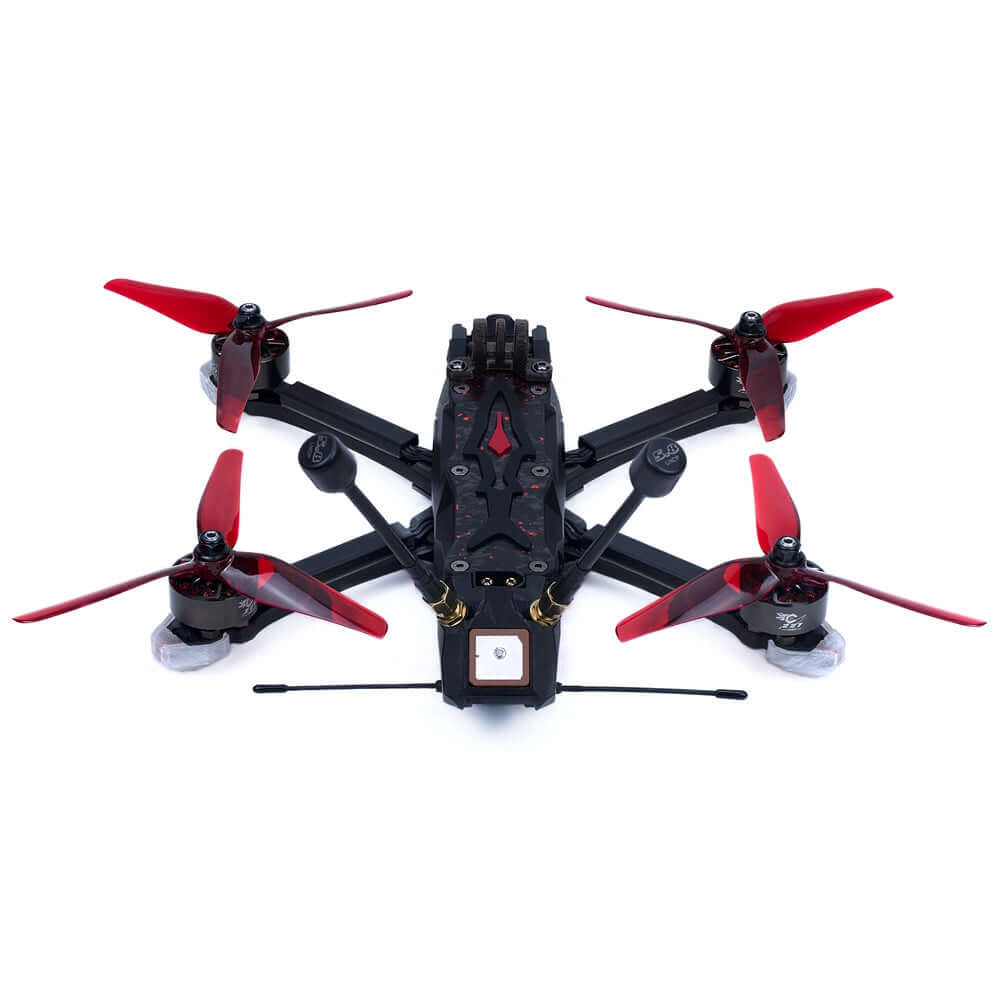

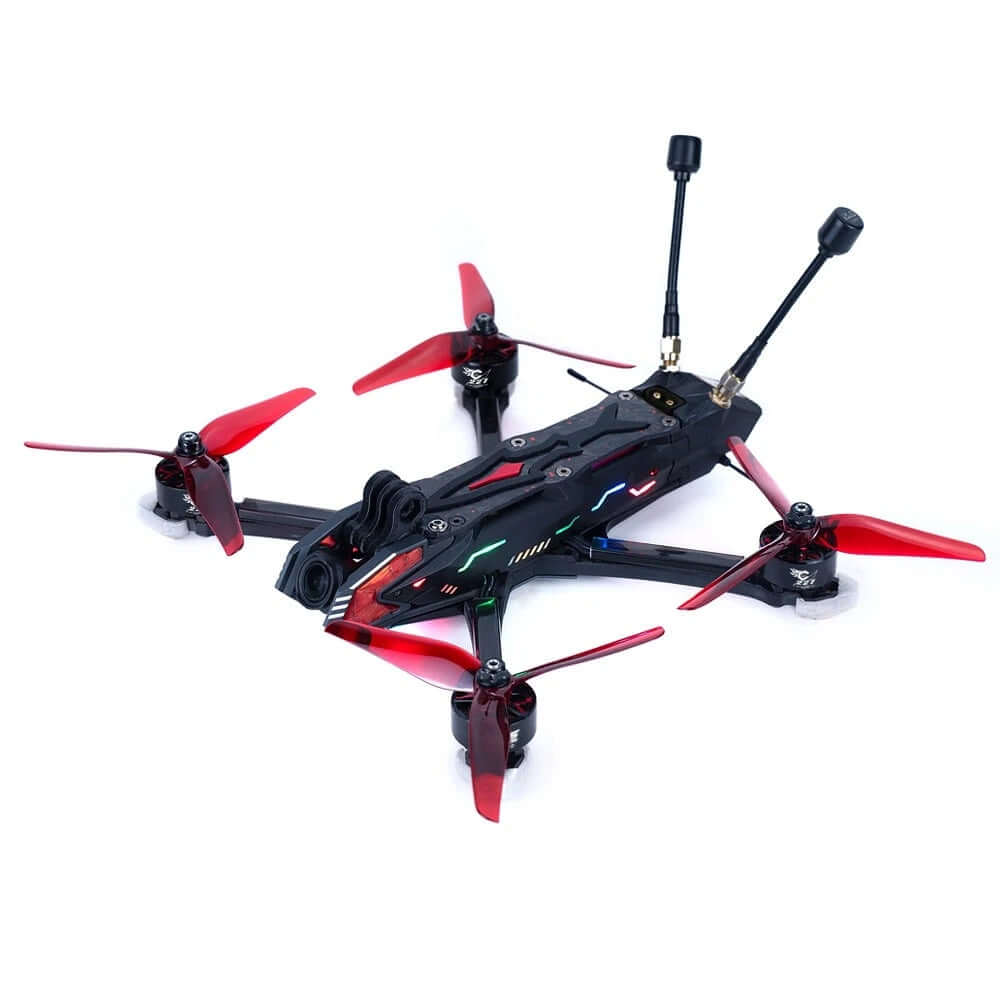

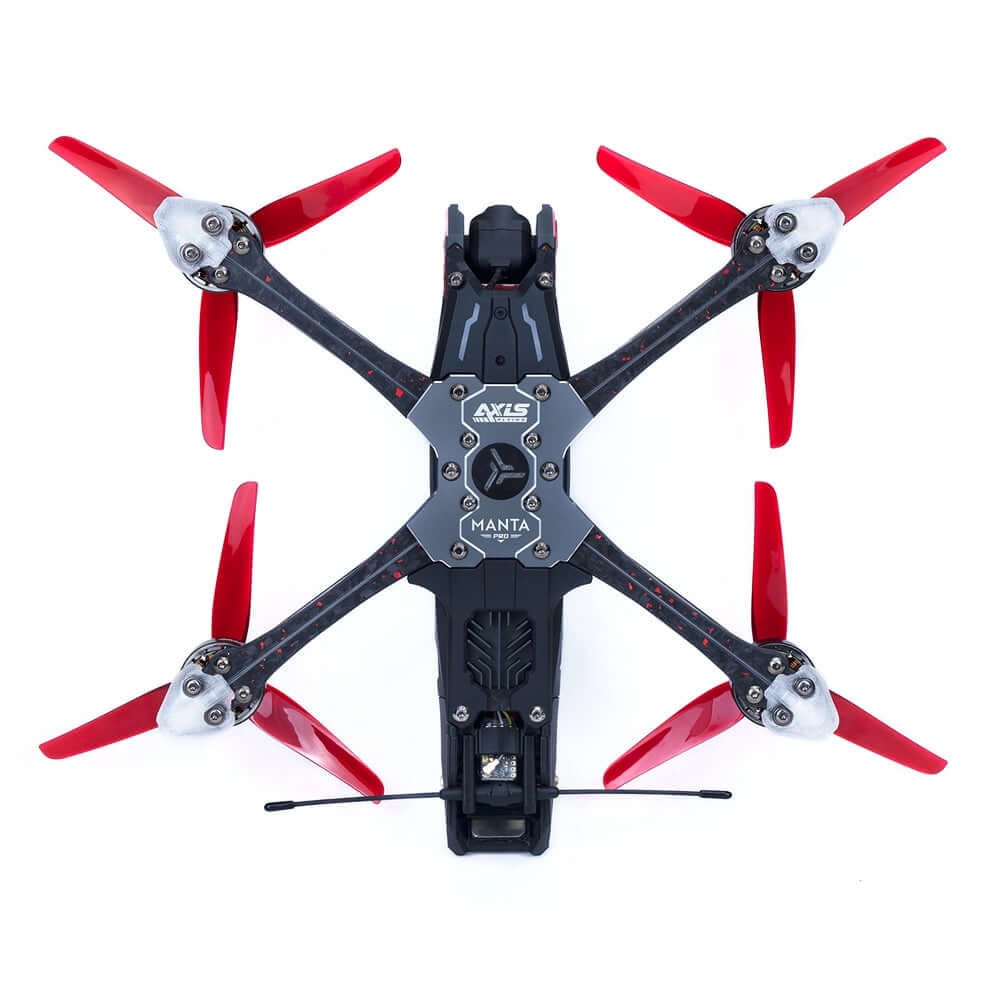

Note: Batteries and transmitters are not included in the packageFPV drone build showcase using MANTA 5 PRO frame kitComplete carbon fiber frame overview of MANTA 5 PRO FPV droneNight visual effect of 34 LED lights on MANTA 5 PRO drone frameSquare X frame structure for cinematic and freestyle flightsCarbon fiber material details of MANTA 5 PRO FPV drone frameAssembly guide of MANTA 5 PRO 5 inch FPV drone frame kit
